Cabrestante de cabrestante portátil con base giratoria

El cabrestante de la serie Thern Liberty® con base giratoria integral brinda resistencia portátil para levantar, tirar y tensar en casi cualquier ángulo. Más importante aún, el funcionamiento silencioso mejora la comunicación del equipo para aumentar la productividad. Entre otros usos, es perfecto para proyectos de construcción de huecos de ascensores y torres de celdas. La carcasa del motor cerrada, el acabado de pintura en polvo y los componentes resistentes a la corrosión garantizan un funcionamiento confiable durante muchos años.

HECHOS RÁPIDOS

  • Capacidad de 1,000 lb (450 kg)
  • Operación silenciosa
  • Ciclo de trabajo extendido
  • Extremadamente portátil
  • Funciones de seguridad mejoradas
  • Productividad incrementada
  • Libre de mantenimiento
  • Garantía líder en la industria

MODELO SERIE

  • 3CP1S-AFS
  • 3CP1M-AFS

¿NECESITAS UNA COTIZACIÓN?

Si no está seguro de qué producto necesita y desea un presupuesto, comuníquese con nosotros.

SOLICITE UN PRESUPUESTO ›

¡MIRA AL CAPSTAN EN ACCIÓN!

WATCH VIDEO ›
  • AFS Liberty
AnteriorPosterior
12

Cabrestante de cabrestante, 3CP1S-AFS / 3CP1M-AFS (Montaje fijo)

Features Performance Specs Accessories Dimensions Resources
Premium Motor with Handle
Premium motor offers quiet operation (80 dBA)* enhancing clear communication between operators. UL- Recognized motor.
*Thern's 3CP1S-AFS winch has a maximum noise level of 80 dBA, averaging 10 dBA less than the competition when measured at a distance of approximately three feet under similar conditions.
Foot Switch Control
Foot switch-controlled operation enhances productivity and safety. IP65, NEMA 4-rated sealed foot switch allows outdoor use.
Integral Rope Lock
Rope lock prevents unintentional drops to enhance safety. Adjustable rope lock accommodates various line exit angles and operator heights.
Durable Swivel Frame with Integral Lock
Adjustable rotation in 15° increments to align loads and lock securely with swivel stop.
Lightweight, engineered design and steel construction enhances portability. Powder-coated steel finish resists wear and promotes durability.
Integral Rope Keep
Spring-loaded rope keep helps prevent accidental removal of hand line from drum to enhance safety.
Engineered Drum Design
Keeps load line from moving during operation, enhancing productivity. Nickel-plated steel construction for optimum performance and durability.
Model Maximum Capacity Rope Diameter Range** Maximum Line Speed Range*** Rated Current Draw Input Voltage Ship Weight Ambient Operating Temperature Range Duty Cycle Mount Type
3CP1S-AFS 1,000 LBS 450 KG ½–¾ IN 13–19 MM 35–50 FPM 11–15 MPM 15 AMP 115V/1 Phase/50–60Hz 76 LBS/34 KG -4 °F–+105 °F -20°C–+40°C 20 Minutes Full Load Swivel
3CP1M-AFS 1,000 LBS 450 KG ½–¾ IN 13–19 MM 35–50 FPM 11–15 MPM 15 AMP 115V/1 Phase/50–60Hz 64 LBS/29 KG -4 °F–+105 °F -20°C–+40°C 20 Minutes Full Load Fixed
3CP2S-AFS 2,000 LBS 900 KG ½–¾ IN 13–19 MM 13–20 FPM 4–6 MPM 15 AMP 115V/1 Phase/50–60Hz 84 LBS/38 KG -4 °F–+105 °F -20°C–+40°C 20 Minutes Full Load Swivel

**Synthetic rope only. Available for purchase through Thern.
***Load dependent.

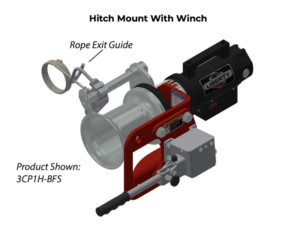

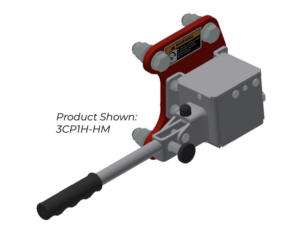

3CP1S-HM Hitch Mount
Heavy-duty (ASTM-grade steel) construction and a red powder-coat finish. For use on vehicles with a 2-inch hitch receiver.
3CP2S-HM Hitch Mount
Heavy-duty (ASTM-grade steel) construction and a red powder coat finish. For use with a class 5 2 ½ inch receiver. May be used with 3CP1S-AFS and 3CP2S-AFS Liberty Capstan winches.

Capstan - Drawings

Owner's Manual
3CP Liberty Series Capstan Winches (A21392-E-1122)
Product Sheet
Liberty Capstan Product Sheet (PS3CP-B-0922)
At A Glance
Thern Winches At A Glance
Industrial Brochure
Thern Industrial Brochure (BRIN-A-0221)
